1"-6" Hydraulic BW Fusion Machine, 32mm-160mm
Part Number: PT-160
Have Questions?
Call on our experts to assist with all your product questions and selections.
800.800.1908
PleaseCall List Price
Product Details
| Size | 1" through 6" (32mm through 160mm) |
| Joining Method | Butt Fusion |

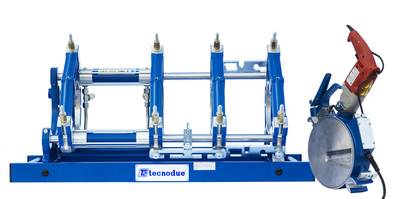

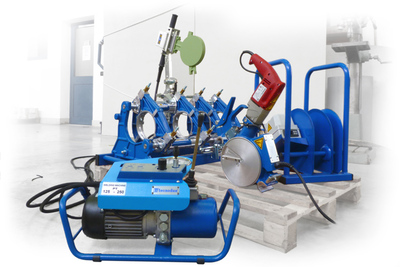

| Standard Machine Package Comes Complete with | Standard Machine Comes Complete with: Kg cm\nBasic Machine : Machine composed by four main clamps d. 160 and two cylinders and heating mirror automatic disconnecting device 35 92x47x46h\nHeating Mirror removable high temperature Teflon coated with electronic temperature control. 11 60x40x8h\nHeating Mirror removable PTFE coated with electronic temperature control and LDU (data Logger) connection. 5 45x35x7\nElectro Hydraulic Unit complete with pressure regulation, by pass and accumulator. 26 45x32x27h\nFacing Tool and Heating Mirror Support. 7 38x43x45h\nReduction Inserts Set with quick fit system suitable for pipes and fittings d. 40-50-63-75-90-110-125-140. 26 \n |
| Key Features | Key Features: \n• The electronic thermostat allows a quick welding temperature set up\n• Electric facing tool with safety micro-switch , two side cutting blades and facing stopper allowing one side facing\n• Hydraulic unit with accumulator , regulating valve , by pass valve and flexible hoses\n• Aluminum alloy reductions inserts with quick fit system\n• The automatic disconnecting device on the basic machine highly suited to detach the pipes from the heating mirror\n• Large Diameter Pressure gauge on the hydraulic unit,\n• Electronic thermostat on the mirror and connection for the LDU (data logger).\n• IPS Inserts available upon request\n• \nMachine produced and duly tested in compliance with regulations in force (UNI 10565 and CE safety rules).\n |
| Technical Data | Technical Data\n• Power Supply: 230 V – 50 Hz\n• Power Consumption: 2.17 kW – 12 A\n• Cylinder Section: 4.32 sq.cm.\n• Weight: See Chart Below\n• Dimensions: See Chart Below\n |
| Accessories | Right or Left Fittings Clamp d. 160 2,9 \nReduction Inserts Set for fitting clamp d. 40-50-63-75-90-110-125-140 3,4 \nStub End Device range 40 – 160 mm 1,5 \n\n |
