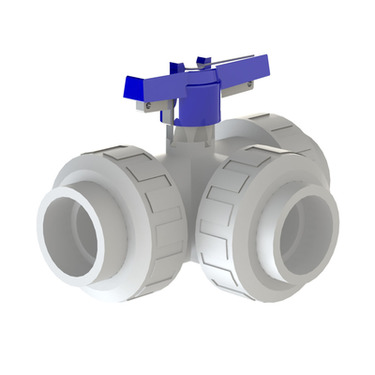

½" KYNAR® PVDF/FPM 3 - Way True Union Ball Valve, L - Port, Threaded
Part Number: TBM 502 4 005-L
Have Questions?
Call on our experts to assist with all your product questions and selections.
800.800.1908
$1,015.00 List Price
Product Details
| A (in) | 3.86 |
| B (in) | 1.57 |
| C (in) | 1.929 |
| d (in) | 0.787 |
| H (in) | 2.835 |
| L (in) | 5.354 |
| T (in) | 0.6 |
| Y (in) | 2.106 |
| Z (in) | 4.213 |
| Size | ½" |
| End Connection | Threaded: NPT |
| Seals | FPM |
| Seats | PTFE |
| Material | Kynar® PVDF |
| Pressure Rating | 232 psi |
| Port | "L" Port |
| Torque: Operating (lb/in) | 18 |
