4" PVC/EPDM True Union Ball Valve Actuator - Normally Closed, Socket
Part Number: TBB 101 2 040-NC
Have Questions?
Call on our experts to assist with all your product questions and selections.
800.800.1908
$1,948.00 List Price
Product Details

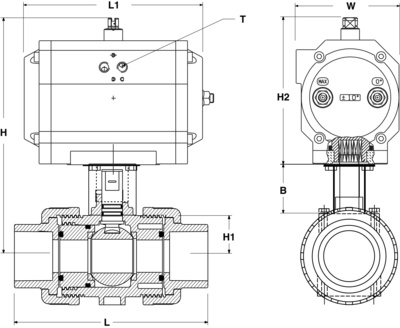

| B (in) | 2.78 |
| H1 (in) | 4.055 |
| H (in) | 14.114 |
| H2 (in) | 7.283 |
| L (in) | 13.071 |
| L1 (in) | 9.685 |
| T | ¼" NPT |
| W (in) | 5.118 |
| Size | 4" |
| End Connection | IPS Socket |
| Seals | EPDM |
| Seats | PTFE |
| Material | PVC |
| Pressure Rating | 150 psi |
| Actuation Type | Normally Closed |
| Cv | 768 |
| Torque: Operating (lb/in) | 371 |
Download CAD Drawings
Adobe 3D PDF help| Product Downloads |
| Product Data Sheet |
| Actuator Cut Sheet |
| Operations and Maintenance Manual |
