3" PP/FPM True Union Ball Valve w/ Locking Handle, Spigot (90mm)
Part Number: TBL 402 5 030
Have Questions?
Call on our experts to assist with all your product questions and selections.
800.800.1908
$1,724.00 List Price
Product Details

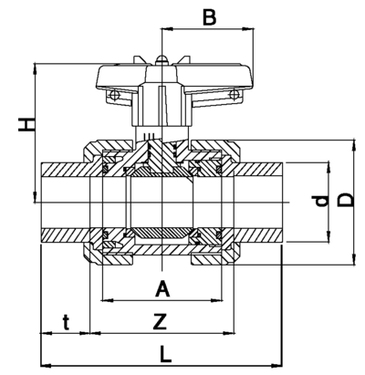

| A (in) | 6.30 |
| B (in) | 5.20 |
| d (in) | 3.543 |
| D (in) | 7.362 |
| H (in) | 6.299 |
| L (in) | 11.614 |
| Size | 3" |
| End Connection | Butt Fusion |
| Seals | FPM |
| Seats | PTFE |
| Material | Polypropylene |
| Pressure Rating | 150 psi |
| Cv | 518 |
| Torque: Operating (lb/in) | 230 |
